CONTAINER DIMENSIONS
45' FT SWAP BODY
Internal Dimensions Length
13.542 mm 44 ft 5,14 in
Internal Dimensions Width
2.438 mm 7 ft 11,98 in
Internal Dimensions Height
2.694 mm 8 ft 10,06 in
Door Opening Width
2.408 mm 7 ft 10,80 in
Door Opening Length
2.585 mm 8 ft 5,77 in
Weight Max Gross
34.000 Kg74.957 lb
Weight Tare
4.750 Kg10.491 lb
Weight Max Payload
27.900 kg61.508 lb
Weight Volume
86 m33.307 Feet3

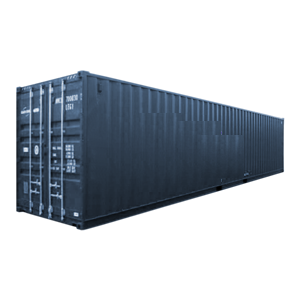

45 HC PALLET WIDE
Internal Dimensions Length
13.716 mm 44.99 in
Internal Dimensions Width
2.438 mm 7.99 in
Internal Dimensions Height
2.896 mm 9.5 in
Door Opening Width
2.340 mm 7.8 in
Door Opening Length
2.285 mm 8.6 in
Weight Max Gross
26.680 kg 58.820 lb
Weight Tare
3.800 kg 8.380 lb
Weight Max Payload
30.480 kg 67.200 lb
Weight Volume
97 m3 3.425 feet
20’ DRY CARGO
Internal Dimensions Length
5,897 mm 19 ft 4,17 in
Internal Dimensions Width
2.348 mm 7 ft 8,44 in
Internal Dimensions Height
2.390 mm 7 ft 9,90 in
Door Opening Width
2.336 mm 7 ft 8,01 in
Door Opening Length
2.280 mm 7 ft 8,01 in
Weight Max Gross
30.480 Kg 67.200 Lb
Weight Tare
2.240 Kg 4.940 Lb
Weight Max Payload
28.240 Kg 62.260 Lb
Weight Volume
33 m3 1.165 Feet3
40' DRY CARGO
Internal Dimensions Length
12,031 mm 39 ft 5,66 in
Internal Dimensions Width
2.348 mm 7 ft 8,44 in
Internal Dimensions Height
2.390 mm 7 ft 9,90 in
Door Opening Width
2.336 mm 7 ft 8,01 in
Door Opening Length
2.280 mm 7 ft 5,45 in
Weight Max Gross
32.500 Kg 71.650 Lb
Weight Tare
3.750 Kg 8.270 Lb
Weight Max Payload
28.750 Kg 63.380 Lb
Weight Volume
68 m3 2.401 Feet3
40’ HIGH CUBE
Internal Dimensions Length
12,031 mm 39 ft 5,66 in
Internal Dimensions Width
2.348 mm 7 ft 8,44 in
Internal Dimensions Height
2.695 mm 8 ft 10,12 in
Door Opening Width
2.336 mm 7 ft 8,01 in
Door Opening Length
Weight Max Gross
32.500 Kg 71.650 Lb
Weight Tare
3.940 Kg 8.690 Lb
Weight Max Payload
28.560 Kg 62.960 Lb
Weight Volume
76 m3 2.684 Feet3
20’ OPEN TOP
Internal Dimensions Length
5,893 mm 19 ft 4,21 in
Internal Dimensions Width
2.346 mm 7 ft 8,36 in
Internal Dimensions Height
2.384 mm 7 ft 9,74 in
Door Opening Width
2.338 mm 7 ft 8,05 in
Door Opening Length
2.244 mm 7 ft 4,35 in
Weight Max Gross
30.480 Kg 67.200 Lb
Weight Tare
2.320 Kg 5.120 Lb
Weight Max Payload
28.160 Kg 62.080 Lb
Weight Volume
33 m3 1.165 Feet 3
40' OPEN TOP
Internal Dimensions Length
12,032 mm 39 ft 5,31 in
Internal Dimensions Width
2.346 mm 7 ft 8,36 in
Internal Dimensions Height
2.381 mm 7 ft 9,74 in
Door Opening Width
2.338 mm 7 ft 8,05 in
Door Opening Length
2.244 mm 7 ft 4,35 in
Weight Max Gross
30.480 Kg 67.200 Lb
Weight Tare
4.120Kg 9.080 Lb
Weight Max Payload
26.360 Kg 58.120 Lb
Weight Volume
66 m3 2.331 Feet 3

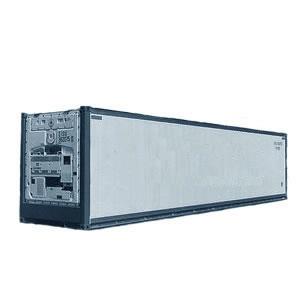

40' HIGH CUBE REEFER
Internal Dimensions Length
11,587 mm 38 ft 0,29 in
Internal Dimensions Width
2.290 mm 7 ft 6,16 in
Internal Dimensions Height
2.539 mm 8 ft 4,00 in
Door Opening Width
2.290 mm 7 ft 6,16 in
Door Opening Length
2.572 mm 8 ft 5,40 in
Weight Max Gross
34.000 Kg74.960 Lb
Weight Tare
4.700 Kg10.360 Lb
Weight Max Payload
29.300 Kg74.960 Lb
Weight Volume
67 m32.366 Feet 3
20' FLAT RACK
Internal Dimensions Length
5,958 mm 19 ft 4,17 in
Internal Dimensions Width
2.018 mm 6 ft 7,45 in
Internal Dimensions Height
2.077 mm 6 ft 9,77 in
Door Opening Width
-
Door Opening Length
-
Weight Max Gross
30.480 Kg67.200 Lb
Weight Tare
2.720 Kg6.000 Lb
Weight Max Payload
27.760 Kg62.120 Lb
Weight Volume
25 m3883 Feet 3
40 FLAT RACK
Internal Dimensions Length
11,986 mm 39 ft 3,66 in
Internal Dimensions Width
2.236 mm 7 ft 4,03 in
Internal Dimensions Height
1.968 mm 6 ft 5,48 in
Door Opening Width
-
Door Opening Length
-
Weight Max Gross
45.000 Kg99.210 Lb
Weight Tare
5.980 Kg13.180 Lb
Weight Max Payload
39.020 Kg86.030 Lb
Weight Volume
53 m31.872 Feet 3
20' TANK
Internal Dimensions Length
6,058 mm 19 ft 10,52 in
Internal Dimensions Width
2.438 mm 8 ft 0,10 in
Internal Dimensions Height
2.591 mm 8 ft 6,02 in
Door Opening Width
-
Door Opening Length
-
Weight Max Gross
36.000 Kg79.366 Lb
Weight Tare
3.385 kgs7.463 Lb
Weight Max Payload
32.615 Kg71.903 Lb
Weight Volume
24 m3848 Feet 3
